DFM400XXM45-TS001

Fast Recovery Diode Module

DFM400XXM45-TS001 Features

* 10.2kV Isolation Package

* Low Reverse Recovery Charge

* High Switching Speed

* Low Forward Volt Drop

* Isolated AlSiC Base With AlN Substrates

* Dual Diodes Can Be Paralleled For 800A Rating KEY PARAMETERS VRRM VF IF IFM (typ) (max) (max) 4500V 2.7V 400A 800A 7(K) 5(K

DFM400XXM45-TS001 Datasheet (229.87 KB)

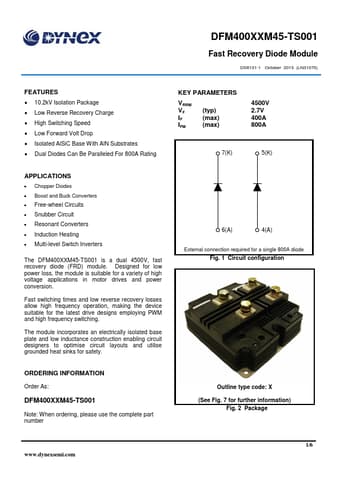

Preview of DFM400XXM45-TS001 PDF

Datasheet Details

Part number:

DFM400XXM45-TS001

Manufacturer:

Dynex

File Size:

229.87 KB

Description:

Fast recovery diode module.
