DFM500NXM33-TS000, Fast Recovery Diode Module

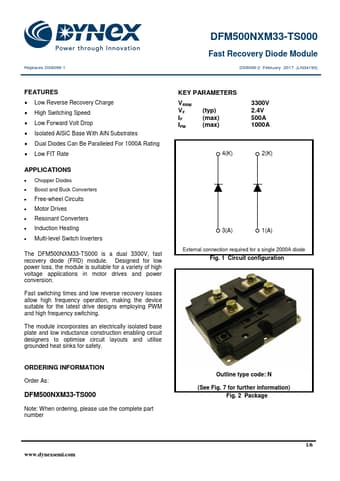

Replaces DS6099-1 DFM500NXM33-TS000 Fast Recovery Diode Module DS6099-2 February 2017 (LN34193) .

datasheet Preview Page 1 from Datasheet4u.com

DFM500NXM33-TS000-Dynex.pdf

DFM500NXM33-TS000 Datasheet Preview — Preview of DFM500NXM33-TS000 PDF

Datasheet Details

Part number:

DFM500NXM33-TS000

Manufacturer:

Dynex

File Size:

294.51 KB

Description:

Fast Recovery Diode Module

Features

* Low Reverse Recovery Charge
* High Switching Speed
* Low Forward Volt Drop
* Isolated AlSiC Base With AlN Substrates
* Dual Diodes Can Be Paralleled For 1000A Rating

Applications

* Chopper Diodes
* Boost and Buck Converters
* Free-wheel Circuits
* Motor Drives
* Resonant Converters
* Induction Heating
* Multi-level Switch Inverters The DFM500NXM33-TS000 is a dual 3300V, fast recovery diode (FRD) module. Designed for low power loss, the module is s
