DFM500XXM65-TS000

Fast Recovery Dual Diode Module

DFM500XXM65-TS000 Features

* Low Reverse Recovery Charge

* High Switching Speed

* Low Forward Volt Drop

* Isolated AlSiC Base with AlN Substrates

* Dual Diodes can be paralleled for 1000A Rating

* Lead Free Construction

* 10.2kV Isolation Package KEY PARAMETERS VRRM VF IF IFM (typ) (max) (max)

DFM500XXM65-TS000 Datasheet (219.25 KB)

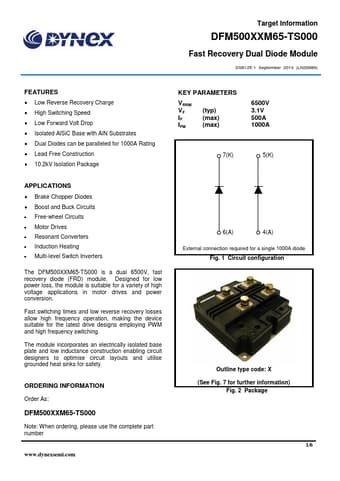

Preview of DFM500XXM65-TS000 PDF

Datasheet Details

Part number:

DFM500XXM65-TS000

Manufacturer:

Dynex

File Size:

219.25 KB

Description:

Fast recovery dual diode module.
