DIM1600FSS12-A000 Datasheet - Dynex

DIM1600FSS12-A000, Single Switch IGBT

Replaces DS5541-3 DIM1600FSS12-A000 Single Switch IGBT Module DS5541-4 July 2014 (LN31768) .

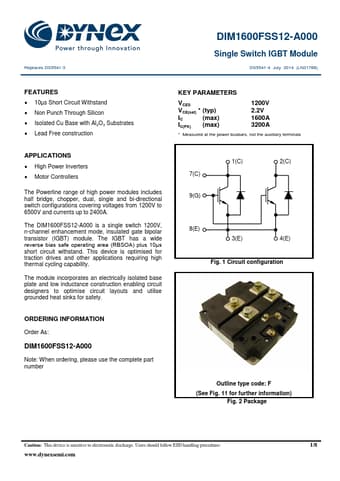

datasheet Preview Page 1 from Datasheet4u.com

DIM1600FSS12-A000-Dynex.pdf

DIM1600FSS12-A000 Datasheet Preview — Preview of DIM1600FSS12-A000 PDF

Datasheet Details

Part number:

DIM1600FSS12-A000

Manufacturer:

Dynex

File Size:

383.49 KB

Description:

Single Switch IGBT

Features

* 10µs Short Circuit Withstand
* Non Punch Through Silicon
* Isolated Cu Base with Al2O3 Substrates
* Lead Free construction KEY PARAMETERS VCES VCE(sat)
* (typ) IC (max) IC(PK) (max) 1200V 2.2V 1600A 3200A
* Measured at the power busbars, not the auxiliary terminals

Applications

* High Power Inverters
* Motor Controllers The Powerline range of high power modules includes half bridge, chopper, dual, single and bi-directional switch configurations covering voltages from 1200V to 6500V and currents up to 2400A. The DIM1600FSS12-A000 is a single switch 1200V, n-channel
