DIM1600FSS12-L000

Single Switch IGBT Module

DIM1600FSS12-L000 Features

* 10µs Short Circuit Withstand

* Isolated Cu Base with Al2O3 Substrates

* Optimised for high frequency operation

* Lead Free construction KEY PARAMETERS VCES VCE(sat)

* (typ) IC (max) IC(PK) (max) 1200V 3.1V 1600A 3200A

* Measured at the power busbars, not the auxiliary t

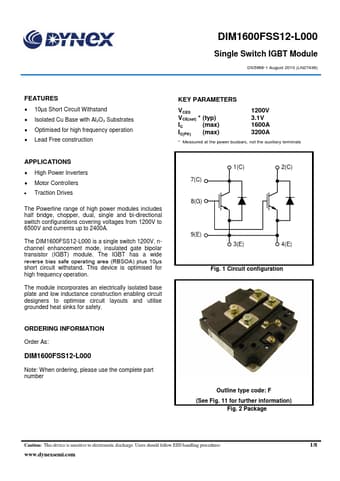

DIM1600FSS12-L000 Datasheet (265.03 KB)

Preview of DIM1600FSS12-L000 PDF

Datasheet Details

Part number:

DIM1600FSS12-L000

Manufacturer:

Dynex

File Size:

265.03 KB

Description:

Single switch igbt module.
