DIM250PKM33-TL000, IGBT

DIM250PKM33-TL000 IGBT Chopper Module DS6117-1 July 2013 (LN30666) .

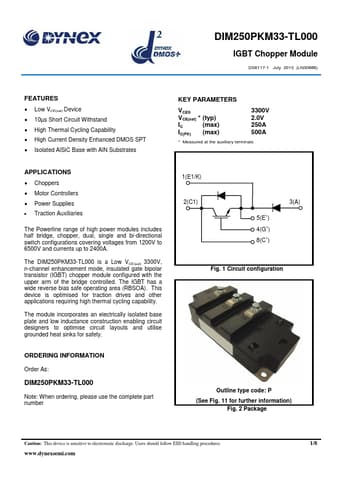

datasheet Preview Page 1 from Datasheet4u.com

DIM250PKM33-TL000-Dynex.pdf

DIM250PKM33-TL000 Datasheet Preview — Preview of DIM250PKM33-TL000 PDF

Datasheet Details

Part number:

DIM250PKM33-TL000

Manufacturer:

Dynex

File Size:

318.47 KB

Description:

IGBT

Features

* Low VCE(sat) Device
* 10µs Short Circuit Withstand
* High Thermal Cycling Capability
* High Current Density Enhanced DMOS SPT
* Isolated AlSiC Base with AlN Substrates KEY PARAMETERS VCES VCE(sat)
* (typ) IC (max) IC(PK) (max) 3300V 2.0V 250A 500A
* Measured at the

Applications

* Choppers
* Motor Controllers
* Power Supplies
* Traction Auxiliaries The Powerline range of high power modules includes half bridge, chopper, dual, single and bi-directional switch configurations covering voltages from 1200V to 6500V and currents up to 2400A. The DIM250PKM33-TL000
