ECP200 Datasheet, Amplifier, EIC discrete Semiconductors

ECP200 Features

  • Amplifier 1800 - 2300MHz 33 dBm P1dB High Linearity: 49 dBm OIP3 High Efficiency: PAE > 50% 11 dB Linear Gain Single 5V Supply High Reliabilty Class A or AB operation Applications Basestations a

PDF File Details

Part number:

ECP200

Manufacturer:

EIC discrete Semiconductors

File Size:

86.83kb

Download:

📄 Datasheet

Description:

2.0 watt power amplifier. The ECP200 is a single stage, 2.0W power amplifier that offers excellent linearity and efficiency. This device was developed using Ei

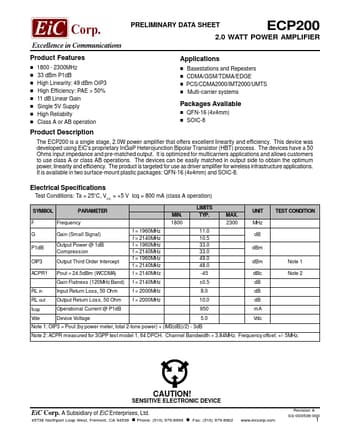

Datasheet Preview: ECP200 📥 Download PDF (86.83kb)
Page 2 of ECP200 Page 3 of ECP200

ECP200 Application

  • Applications Basestations and Repeaters CDMA/GSM/TDMA/EDGE PCS/CDMA2000/IMT2000/UMTS Multi-carrier systems Packages Available QFN-16 (4x4mm) SOIC-8
