ECP200G, High Linearity InGaP HBT Amplifier

www.DataSheet4U.com AH312 / ECP200G 2 Watt, High Linearity InGaP HBT Amplifier Product Information Product .
The AH312 / ECP200 is a high dynamic range driver amplifier in a low-cost surface mount package.

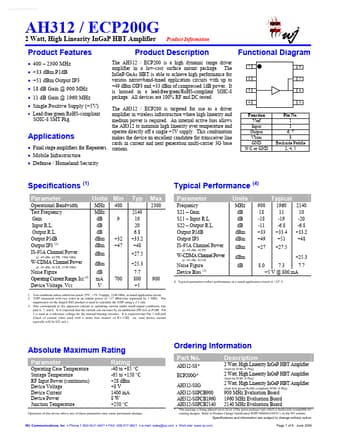

datasheet Preview Page 1 from Datasheet4u.com

ECP200G_WJCommunication.pdf

ECP200G Datasheet Preview — Preview of ECP200G PDF

Datasheet Details

Part number:

ECP200G

Manufacturer:

WJ Communication

File Size:

886.85 KB

Description:

High Linearity InGaP HBT Amplifier

Features

* 400
* 2300 MHz
* +33 dBm P1dB
* +51 dBm Output IP3
* 18 dB Gain @ 900 MHz
* 11 dB Gain @ 1960 MHz
* Single Positive Supply (+5V)

Applications

* Final stage amplifiers for Repeaters
* Mobile Infrastructure
* Defense / Homeland Security Function Vref Input Output Vbias GND N/C or GND Pin No. 1 3 6, 7 8 Backside Paddle 2, 4, 5 Specifications (1) Parameter Operational Bandwidth Test Frequency Gain Input R. L. Output
