ECP052D Datasheet, Amplifier, TriQuint

ECP052D Features

  • Amplifier
  • 800
      – 1000 MHz
  • 18 dB Gain @ 900 MHz
  • +28.5 dBm P1dB
  • +44 dBm Output IP3
  • Single Positive Supply (+5V)
  • Lead-free/

PDF File Details

Part number:

ECP052D

Manufacturer:

TriQuint

File Size:

208.04kb

Download:

📄 Datasheet

Description:

High linearity ingap hbt amplifier. The ECP052D is a high dynamic range driver amplifier in a low-cost surface mount package. The InGaP/GaAs HBT is able to achieve high

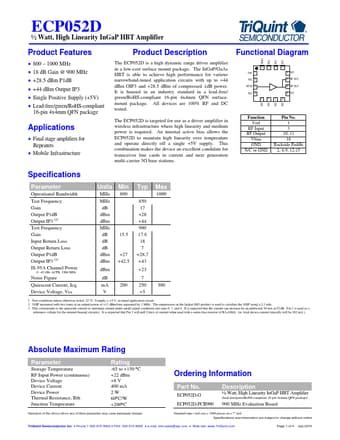

Datasheet Preview: ECP052D 📥 Download PDF (208.04kb)
Page 2 of ECP052D Page 3 of ECP052D

ECP052D Application

  • Applications
  • Final stage amplifiers for Repeaters
  • Mobile Infrastructure Product Description The ECP052D is a high dynamic range

TAGS

ECP052D
High
Linearity
InGaP
HBT
Amplifier
TriQuint
