ECP100G Datasheet, Amplifier, WJ Communication

✔ ECP100G Features

400
2300 MHz
+31.5 dBm P1dB
+46 dBm Output IP3
18 dB Gain @ 900 MHz
Single Positive Supply (+5 V)
Lead-free/green/RoHS-compliant SOIC-8 SMT Pkg. Product De

✔ ECP100G Application

Final stage amplifiers for Repeaters
Mobile Infrastructure
Defense / Homeland Security Function Vref

PDF File Details

WJ Communication manufacturer logo

Part number:

ECP100G

Manufacturer:

WJ Communication

File Size:

839.04kb

Download:

📄 Datasheet

Description:

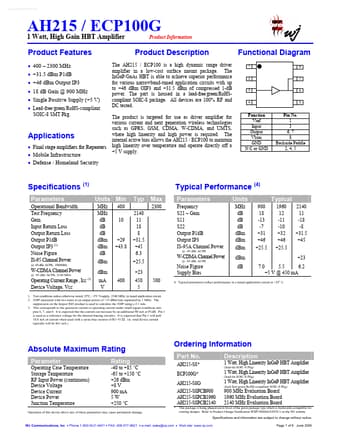

High gain hbt amplifier. The AH215 / ECP100 is a high dynamic range driver amplifier in a low-cost surface mount package. The InGaP/GaAs HBT is able to achiev
