ECP103 Datasheet, Amplifier, WJ Communication

ECP103 Features

  • Amplifier x 2300 - 2700 MHz x +30.5 dBm P1dB x +46 dBm Output IP3 x 10 dB Gain @ 2450 MHz x 9 dB Gain @ 2600 MHz x Single Positive Supply (+5V) x Available in SOIC-8 or 16pin 4mm QFN package Appl

PDF File Details

Part number:

ECP103

Manufacturer:

WJ Communication

File Size:

382.21kb

Download:

📄 Datasheet

Description:

High linearity ingap hbt amplifier. The ECP103 is a high dynamic range driver amplifier in a low-cost surface mount package. The InGaP/GaAs HBT is able to achieve superi

Datasheet Preview: ECP103 📥 Download PDF (382.21kb)

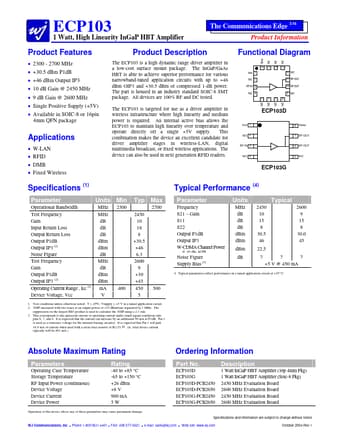

Page 2 of ECP103 Page 3 of ECP103

ECP103 Application

  • Applications x W-LAN x RFID x DMB x Fixed Wireless Product Description The ECP103 is a high dynamic range driver amplifier in a low-cost surface mo
