ECP052 Features

  • Amplifier
  • 800
      – 1000 MHz
  • +28.5 dBm P1dB
  • +44 dBm Output IP3
  • 18 dB Gain @ 900 MHz
  • Single Positive Supply (+5V)
  • Available

PDF File Details

Part number:

ECP052

Manufacturer:

WJ Communication

File Size:

221.50kb

Download:

📄 Datasheet

Description:

High linearity ingap hbt amplifier. The ECP052 is a high dynamic range driver amplifier in a low-cost surface mount package. The InGaP/GaAs HBT is able to achieve high p

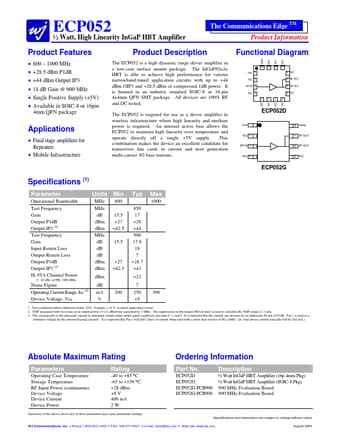

Datasheet Preview: ECP052 📥 Download PDF (221.50kb)
Page 2 of ECP052 Page 3 of ECP052

ECP052 Application

  • Applications
  • Final stage amplifiers for Repeaters
  • Mobile Infrastructure Product Description The ECP052 is a high dynamic range
