ECP050D Datasheet, Amplifier, WJ Communication

ECP050D Features

  • Amplifier x 1800
      – 2300 MHz x +28.5 dBm P1dB x +44 dBm Output IP3 x 14 dB Gain @ 1960 MHz x +5V Single Positive Supply x 16-pin 4x4mm lead-free/green/ RoHS-compliant QFN Package

PDF File Details

Part number:

ECP050D

Manufacturer:

WJ Communication

File Size:

515.41kb

Download:

📄 Datasheet

Description:

High linearity ingap hbt amplifier. The ECP050D is a high dynamic range driver amplifier in a low-cost surface mount package. The InGaP/GaAs HBT is able to achieve high

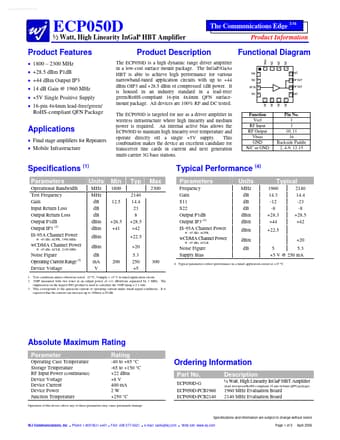

Datasheet Preview: ECP050D 📥 Download PDF (515.41kb)
Page 2 of ECP050D Page 3 of ECP050D

ECP050D Application

  • Applications x Final stage amplifiers for Repeaters x Mobile Infrastructure Function Vref RF Input RF Output Vbias GND N/C or GND Pin No. 1 3 10,
