ECP200D, High Linearity InGaP HBT Amplifier

www.DataSheet4U.com ECP200D Product .
The ECP200D is a high dynamic range driver amplifier in a low-cost surface mount package.

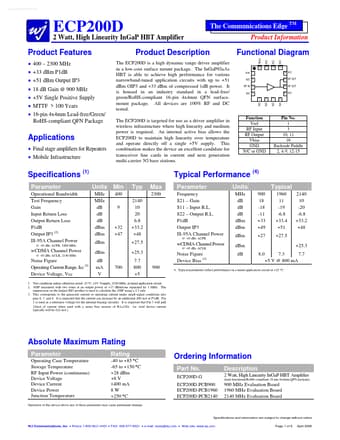

datasheet Preview Page 1 from Datasheet4u.com

ECP200D_WJCommunication.pdf

ECP200D Datasheet Preview — Preview of ECP200D PDF

Datasheet Details

Part number:

ECP200D

Manufacturer:

WJ Communication

File Size:

345.62 KB

Description:

High Linearity InGaP HBT Amplifier

Features

* 400
* 2300 MHz
* +33 dBm P1dB
* +51 dBm Output IP3
* 18 dB Gain @ 900 MHz
* +5V Single Positive Supply
* MTTF > 100 Years
* 16-pin 4x4mm Lead-free/Green/ RoHS-compliant QFN Package The Communications Edge TM Product Information 2 Wa

Applications

* Final stage amplifiers for Repeaters
* Mobile Infrastructure Function Vref RF Input RF Output Vbias GND N/C or GND Pin No. 1 3 10, 11 16 Backside Paddle 2, 4-9, 12-15 Specifications (1) Parameter Operational Bandwidth Test Frequency Gain Input Return Loss Output Return Loss P1dB
