1N914W SMALL SIGNAL DIODE

EIC

Description

www.eicsemi.com 1N914W PRV : 100 Volts Io : 200 mA .

📥 Download Datasheet

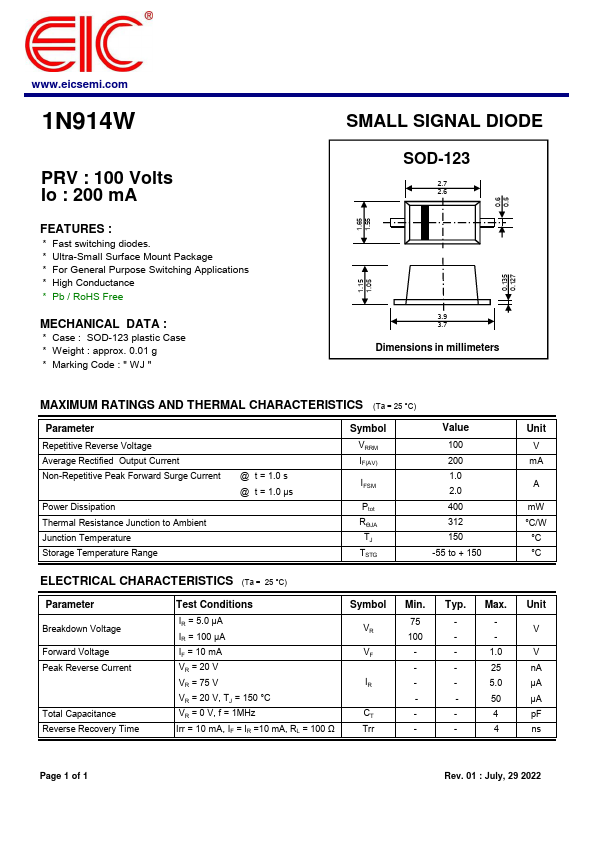

1N914W Datasheet Preview — Preview of 1N914W PDF

Datasheet Specifications

Part number: 1N914W
Manufacturer: EIC
File Size: 123.18 KB
Datasheet: 1N914W-EIC.pdf
Description: SMALL SIGNAL DIODE

Features

* :
* Fast switching diodes.
* Ultra-Small Surface Mount Package

Applications

* High Conductance
* Pb / RoHS Free MECHANICAL DATA :
* Case : SOD-123 plastic Case
* Weight : approx. 0.01 g
* Marking Code : " WJ " 1.15 1.65 1.05 1.55 SMALL SIGNAL DIODE SOD-123 2.7 2.6 3.9 3.7 Dimensions in millimeters 0.6 0.135 0.5 0.127 MAXIMUM RATINGS AND THERMAL
