EM6603 Ultra Low Power Multi I/O Microcontroller

EM6603 Description

EM MICROELECTRONIC - MARIN SA EM6603 Ultra Low Power Multi I/O Microcontroller .
The EM6603 is an advanced single chip low cost, mask programmed - CMOS 4-bit microcontroller.

EM6603 Features

* Low Power - typical 1.8µA active mode - typical 0.35µA standby mode - typical 0.1µA sleep mode @ 1.5V, 32kHz, 25 °C
* Low Voltage - 1.2 to 3.6 V
* buzzer - three tone
* ROM - 2k × 16 (Mask Programmed)
* RAM - 96 × 4 (User Read/Write)
* 2 clocks per i

EM6603 Applications

* sensor interfaces domestic appliances security systems bicycle computers automotive controls TV & audio remote controls measurement equipment R/F and IR. control 03/02 REV. G/439 Copyright  2002, EM Microelectronic-Marin SA 1 www. emmicroelectronic. com EM6603 EM6603 at a glance
* Power

📥 Download Datasheet

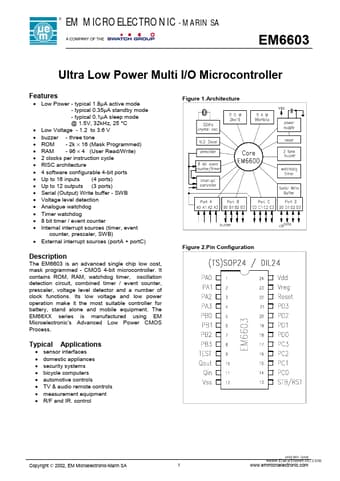

Preview of EM6603 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
EM6603
Manufacturer
EM Microelectronic
File Size
672.75 KB
Datasheet
EM6603_EMMicroelectronic.pdf
Description
Ultra Low Power Multi I/O Microcontroller
