EM6620 Ultra-low power microcontroller

EM6620 Description

R EM MICROELECTRONIC - MARIN SA EM6620 Ultra Low Power Microcontroller with 4x8 LCD Driver .
The EM6620 is an advanced single chip CMOS 4bit microcontroller.

EM6620 Features

* Low Power - 2.1 µA active mode, LCD On - 0.5 µA standby mode, LCD Off - 0.1 µA sleep mode @ 1.5V, 32kHz, 25°C Low Voltage - 1.2 to 3.6 V SVLD - metal mask programmable (2.0V) ROM - 1280 × 16 bits RAM - 64 × 4 bits 2 clocks per instruction cycle 72 basic instructions Oscillation supervisor

EM6620 Applications

* Timing device Medical applications Domestic appliance Timer / sports timing devices Safety and security devices Automotive controls with display Measurement equipment Interactive system with display Bicycle com

📥 Download Datasheet

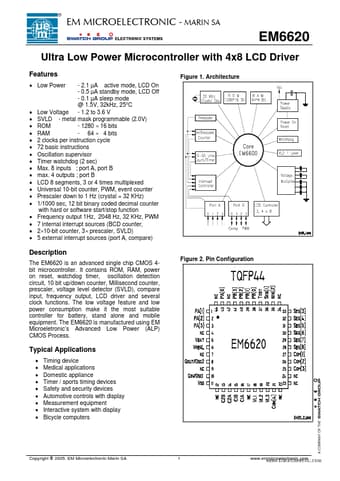

Preview of EM6620 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
EM6620
Manufacturer
EM Microelectronic
File Size
862.09 KB
Datasheet
EM6620_EMMicroelectronic.pdf
Description
Ultra-low power microcontroller
