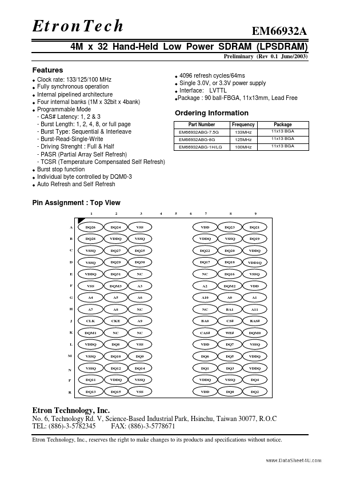

EM66932A 4M x 32 Hand-Held Low Power SDRAM

Symbol Type Description CLK 4M x 32 HH LPSDRAM EM66932A Table 1. Pin Details of 4Mx32 HH LPSDRAM Input Clock: CLK is driven by the system clock. All SDRAM input signals are sampled on the positive edge of CLK. CLK also increments the internal burst counter and controls the output registers. Inp.

EM66932A Features

* Clock rate: 133/125/100 MHz Fully synchronous operation Internal pipelined architecture Four internal banks (1M x 32bit x 4bank) Programmable Mode - CAS# Latency: 1, 2 & 3 - Burst Length: 1, 2, 4, 8, or full page - Burst Type: Sequential & Interleave - Burst-Read-Single-Write - Driving Strenght : Fu

EM66932A Datasheet (198.84 KB)
