EM669325 Datasheet - Etron Technology

EM669325 - 4M x 32 Low Power SDRAM

Symbol Type Description CLK 4M x 32 LPSDRAM EM669325 Table 1.

Pin Details of 4Mx32 LPSDRAM Input Clock: CLK is driven by the system clock.

All SDRAM input signals are sampled on the positive edge of CLK.

CLK also increments the internal burst counter and controls the output registers.

Input Clo

EM669325 Features

* Clock rate: 133/125/100 MHz Fully synchronous operation Internal pipelined architecture Four internal banks (1M x 32bit x 4bank) Programmable Mode - CAS# Latency: 1, 2 & 3 - Burst Length: 1, 2, 4, 8, or full page - Burst Type: Sequential & Interleave - Burst-Read-Single-Write

* Burst stop fu

EM669325_EtronTechnology.pdf

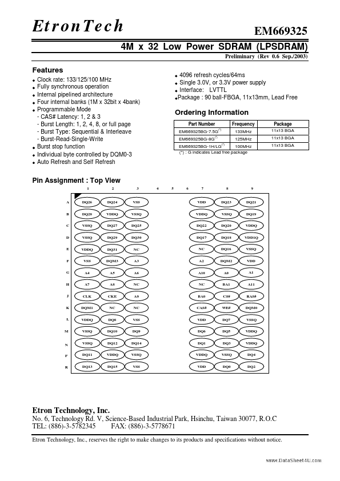

Preview of EM669325 PDF
EM669325 Datasheet Preview Page 2 EM669325 Datasheet Preview Page 3

Datasheet Details

Part number:

EM669325

Manufacturer:

Etron Technology

File Size:

600.71 KB

Description:

4m x 32 low power sdram.
