EM6604 Ultra Low Power Multi I/O Microcontroller

EM6604 Description

EM MICROELECTRONIC - MARIN SA EM6604 Ultra Low Power Multi I/O Microcontroller .
The EM6604 series is an advanced single chip, mask programmed low-power low-voltage CMOS 4-bit microcontroller.

EM6604 Features

* Low Power - typical 1.7µA active mode - typical 0.3µA standby mode @ 1.5V, 32kHz, 25°C
* Low Voltage - 1.2 to 1.7V
* buzzer - 2kHz
* ROM - 1536×16bit (Mask Programmed)
* RAM - 72 × 4bit (User Read/Write)
* 2 clocks per instruction cycle
* RIS

EM6604 Applications

* sensor interfaces domestic appliances security systems detectors automotive control clocks measurement equipment 03.02 REV. D/440 Copyright  2002, EM Microelectronic-Marin SA 1 www. emmicroelectronic. com EM6604 EM6604 at a glance
* Power Supply - Low Voltage, low power architecture -

📥 Download Datasheet

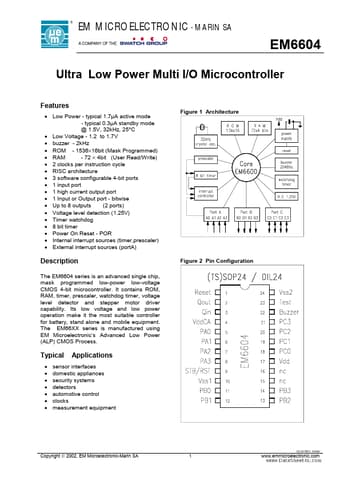

Preview of EM6604 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
EM6604
Manufacturer
EM Microelectronic
File Size
455.24 KB
Datasheet
EM6604_EMMicroelectronic.pdf
Description
Ultra Low Power Multi I/O Microcontroller
