B65843 Datasheet - EPCOS

B65843 Recommended for xDSL applications

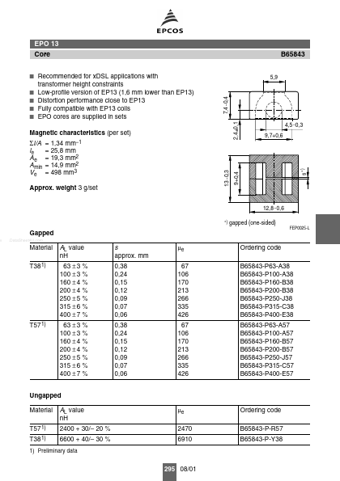

EPO 13 Core s Recommended for xDSL applications with s s s s B65843 5,9 transformer height constraints Low-profile version of EP13 (1,6 mm lower than EP13) Distortion performance close to EP13 Fully compatible with EP13 coils EPO cores are supplied in sets 7,4 _ 0,4 Magnetic characteristics (per set) Σl/A le Ae A min Ve = 1,34 mm 1 = 25,8 mm = 19,3 mm2 = 14,9 mm2 = 498 mm3 2,4±0,1 4,5 _ 0,3 9,7+0,6 13 _ 0,3 Approx. weight 3 g/set 9+0,4 12,8 _ 0,6 ∗) gapped (one-sided) FEP0025.

B65843_EPCOS.pdf

Preview of B65843 PDF
B65843 Datasheet Preview Page 2 B65843 Datasheet Preview Page 3

Datasheet Details

Part number:

B65843

Manufacturer:

EPCOS

File Size:

226.99 KB

Description:

Recommended for xdsl applications.
