EML3192 - 420kHz Non-synchronous Step-Down Converter

EML3192 Description

ESMT EML3192 3A, 36V, 420kHz Non-synchronous Step-Down Converter General .
The EML3192 is a 3A, current-mode step-down converter with an integrated high-side switch.

EML3192 Features

* a PWM mode operation with internally fixed 420kHz switching frequency. The EML3192 provides a single highly efficient solution with current mode control for fast loop response and easy compensation. The EML3192 also automatically enters PSM mode at light load. Cycle-by-cycle current limiting and the

EML3192 Applications

* 12V and 24V Distributed Power Systems
* Battery Powered Systems
* Industrial Power Systems
* LCD and Plasma TVs
* Automotive System VIN 4.7uF
* 4 0.1uF 50V 50V 330kW OFF ON 43kW 10kW 1uF 10V 8 IN BS 2 EML3192 SW 1 7 EN 3 VCC 6 PG GND 4 FB 5 0.1uF 10V 4.7uH 37kW

📥 Download Datasheet

Preview of EML3192 PDF

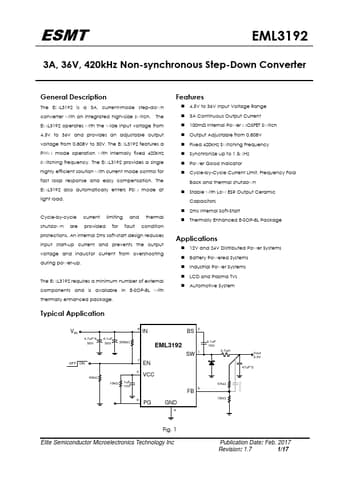

datasheet Preview Page 2 datasheet Preview Page 3
