EML3171

Synchronous Step-Down DC-DC Converter

Elite Semiconductor

EML3171 Features

* Wide Operating Voltage Ranges : 2.6V to 5.5V

* 2.0A Output Current

* High efficiency Buck Power Converter

* Auto-select PSM/PWM

* LDO mode: duty cycle: 100%

* Synchronous Power Switches Rectification, no Schottky Diode Required

* 1.4MHz Switching Frequency

* Interna

EML3171 General Description

EML3171 is a high efficiency, DC-DC synchronous buck converter which provides 2.0A output loading after output voltage reach preset voltage. EML3171 uses different modulation algorithms for various loading conditions. Under heavy load, EML3171 regulates the output voltage using Pulse Width Modulatio.

EML3171 Datasheet (482.23 KB)

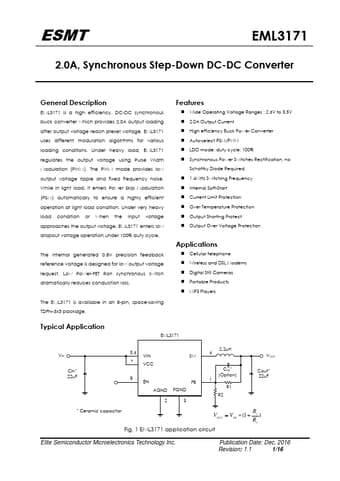

EML3171 Datasheet Preview — Preview of EML3171 PDF

Datasheet Details

Part number:

EML3171

Manufacturer:

Elite Semiconductor

File Size:

482.23 KB

Description:

Synchronous step-down dc-dc converter.
