EML3022 - Synchronous Step-Down Regulator

EML3022 Description

ESMT EML3022 Dual Channel 1A, Synchronous Step-Down Regulator General .
EML3022 is designed with high efficiency step down DC/DC converter and supports dual channel for portable devices applications.

EML3022 Features

* with extreme low quiescent current with no load which is the best fit for extending battery life during the standby mode. The device operates from 2.5V to 5.5V input voltage and up to 1A output current capability. High 1.5MHz internal frequency makes small surface mount inductors and capacitors poss

📥 Download Datasheet

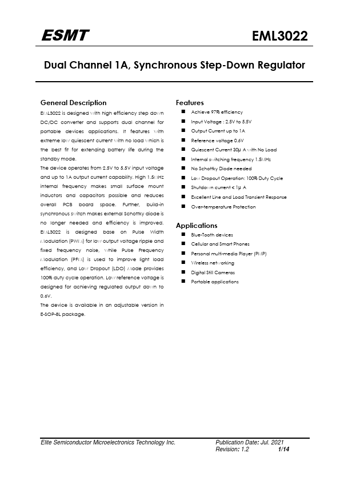

Preview of EML3022 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
EML3022
Manufacturer
Elite Semiconductor
File Size
548.42 KB
Datasheet
EML3022-EliteSemiconductor.pdf
Description
Synchronous Step-Down Regulator
