M12L128168A-5TVG2S

2M x 16 Bit x 4 Banks Synchronous DRAM

M12L128168A-5TVG2S Features

* JEDEC standard 3.3V power supply

* LVTTL compatible with multiplexed address

* Four banks operation

* MRS cycle with address key programs - CAS Latency ( 2 & 3 ) - Burst Length ( 1, 2, 4, 8 & full page ) - Burst Type ( Sequential & Interleave )

* All inputs are sampled at the p

M12L128168A-5TVG2S General Description

The M12L128168A is 134,217,728 bits synchronous high data rate Dynamic RAM organized as 4 x 2,097,152 words by 16 bits. Synchronous design allows precise cycle control with the use of system clock I/O transactions are possible on every clock cycle. Range of operating frequencies, programmable burst .

M12L128168A-5TVG2S Datasheet (1.02 MB)

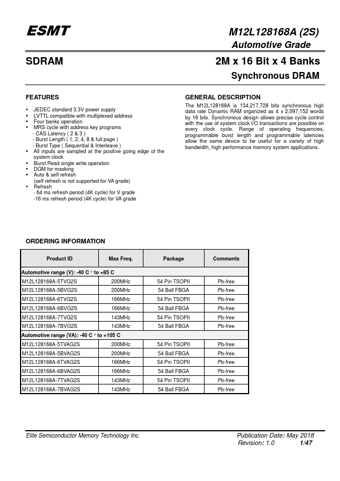

Preview of M12L128168A-5TVG2S PDF

Datasheet Details

Part number:

M12L128168A-5TVG2S

Manufacturer:

ESMT

File Size:

1.02 MB

Description:

2m x 16 bit x 4 banks synchronous dram.
