M12L64164A-5TG2C

1M x 16 Bit x 4 Banks Synchronous DRAM

M12L64164A-5TG2C Features

* JEDEC standard 3.3V power supply LVTTL compatible with multiplexed address Four banks operation MRS cycle with address key programs - CAS Latency (2 & 3) - Burst Length (1, 2, 4, 8 & full page) - Burst Type (Sequential & Interleave) All inputs are sampled at the positive going edge of the system clo

M12L64164A-5TG2C General Description

The M12L64164A is 67,108,864 bits synchronous high data rate Dynamic RAM organized as 4 x 1,048,576 words by 16 bits. Synchronous design allows precise cycle controls with the use of sys.

M12L64164A-5TG2C Datasheet (1.20 MB)

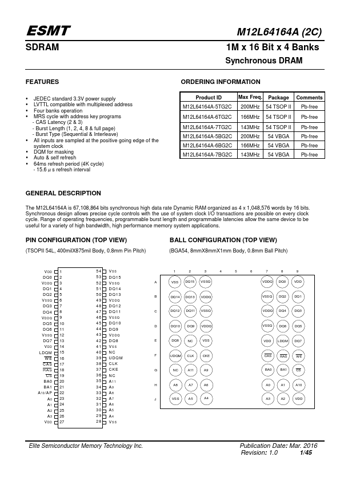

Preview of M12L64164A-5TG2C PDF

Datasheet Details

Part number:

M12L64164A-5TG2C

Manufacturer:

ESMT

File Size:

1.20 MB

Description:

1m x 16 bit x 4 banks synchronous dram.
