M12L64322A-6BG2S, M12L64322A - 512K x 32 Bit x 4 Banks Synchronous DRAM

Datasheet Details

Part number	M12L64322A-6BG2S, M12L64322A
Manufacturer	ESMT
File Size	815.28 KB
Description	512K x 32 Bit x 4 Banks Synchronous DRAM
Datasheet	M12L64322A-ESMT.pdf
Note	This datasheet PDF includes multiple part numbers: M12L64322A-6BG2S, M12L64322A. Please refer to the document for exact specifications by model.

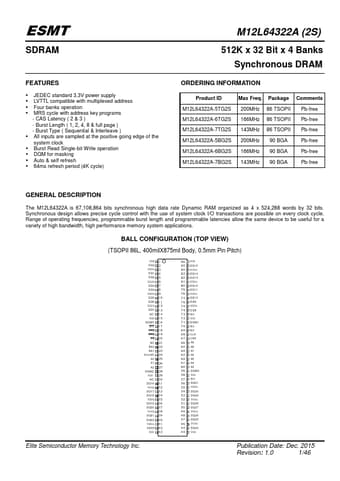

The M12L64322A is 67,108,864 bits synchronous high data rate Dynamic RAM organized as 4 x 524,288 words by 32 bits.

JEDEC standard 3.3V power supply LVTTL compatible with multiplexed address Four banks operation MRS cycle with address key programs - CAS Latency ( 2 & 3 ) - Burst Length ( 1, 2, 4, 8 & full page ) - Burst Type ( Sequential & Interleave ) All inputs are sampled at the positive going edge of the system clock Burst Read Single-bit Write operation DQM for masking Auto & self refresh 64ms refresh period (4K cycle) M12L64322A (2S) 512K x 32 Bit x 4 Banks Synchronous DRAM.
