M12L64322A-7BG2S

512K x 32 Bit x 4 Banks Synchronous DRAM

M12L64322A-7BG2S Features

* JEDEC standard 3.3V power supply LVTTL compatible with multiplexed address Four banks operation MRS cycle with address key programs - CAS Latency ( 2 & 3 ) - Burst Length ( 1, 2, 4, 8 & full page ) - Burst Type ( Sequential & Interleave ) All inputs are sampled at the positive going edge of the syst

M12L64322A-7BG2S General Description

The M12L64322A is 67,108,864 bits synchronous high data rate Dynamic RAM organized as 4 x 524,288 words by 32 bits. Synchronous design allows precise cycle control with the.

M12L64322A-7BG2S Datasheet (815.28 KB)

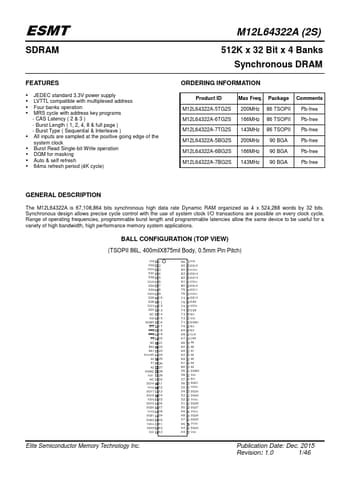

Preview of M12L64322A-7BG2S PDF

Datasheet Details

Part number:

M12L64322A-7BG2S

Manufacturer:

ESMT

File Size:

815.28 KB

Description:

512k x 32 bit x 4 banks synchronous dram.
