ETA1092

1MHz High Output current High Efficiency Synchronous Step-Up Converter

ETA

ETA1092 Features

* are integrated in a tiny QFN3x3-16 package. With 1MHz switching frequency, small external input and output capacitors and inductor can be used. FEATURES

* Up to 97% Energy Converting Efficiency

* Up to 3A output current at 5V output, 3.6V input

* Externally adjustable output voltage

ETA1092 General Description

ETA1092 is an ETA Solutions’ high efficiency, high frequency synchronous Step-Up converter, capable of delivering output current up to 3A at a 5V output from a 3.6V input. With a low Rdson Power MOS and a built-in synchronous rectifier, its efficiency can be as high as 93% at a 5V/2.1A load. This gr.

ETA1092 Datasheet (606.00 KB)

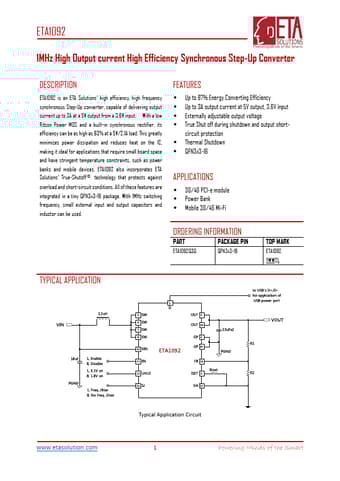

ETA1092 Datasheet Preview — Preview of ETA1092 PDF

Datasheet Details

Part number:

ETA1092

Manufacturer:

ETA

File Size:

606.00 KB

Description:

1mhz high output current high efficiency synchronous step-up converter.
