ETA1093

High Output current Synchronous Step-Up Converter

ETA1093 Features

* are integrated in a tiny QFN3x3-16 package. With 1MHz switching frequency, small external input and output capacitors and inductor can be used. ETA1093 employs a FORCED-PWM control scheme; therefore, the switching frequency is fixed at any load. It makes ETA1093 perfect for systems that sensitive to

ETA1093 General Description

ETA1093 is an ETA Solutions’ high efficiency, high frequency synchronous Step-Up converter, capable of delivering output current up to 3A at a 5V output from a 3.6V input. With a low Rdson Power MOS and a built-in synchronous rectifier, its efficiency can be as high as 93% at a 5V/2.1A load. This gr.

ETA1093 Datasheet (605.70 KB)

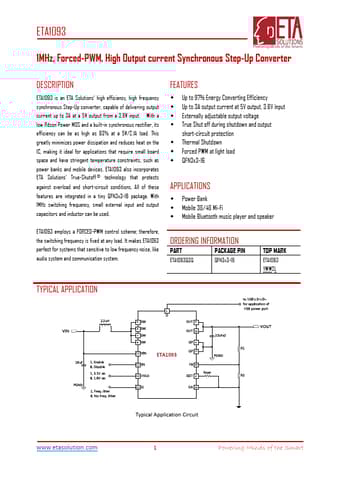

Preview of ETA1093 PDF

Datasheet Details

Part number:

ETA1093

Manufacturer:

ETA

File Size:

605.70 KB

Description:

High output current synchronous step-up converter.
