ETA1096

1MHz High Current High Efficiency Synchronous Step-Up Converter

ETA1096 Features

* are integrated in an economic ESOP8 package, and peripheral component count is minimal. TYPICAL APPLICATION FEATURES

* Up to 97% Energy Converting Efficiency

* Up to 3A output current at 5V output, 3.6V input

* Externally adjustable output voltage

* True Shut off during shutdown and

ETA1096 General Description

ETA1096 is an ETA Solutions’ high efficiency, high frequency synchronous Step-Up converter, capable of delivering output current up to 3A at a 5V output from a 3.6V input. With a low Rdson Power MOS and a built-in synchronous rectifier, its efficiency can be as high as 93% at a 5V/2.1A load. This gr.

ETA1096 Datasheet (545.32 KB)

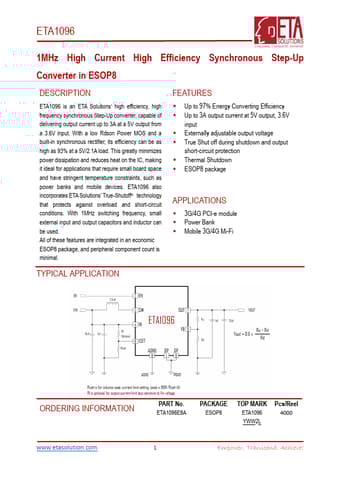

Preview of ETA1096 PDF

Datasheet Details

Part number:

ETA1096

Manufacturer:

ETA

File Size:

545.32 KB

Description:

1mhz high current high efficiency synchronous step-up converter.
