ETA40543

1.2A/16V Fully Integrated Linear Charger

ETA40543 Features

* 16V input standoff voltage

* 4.35V charge termination voltage

* 2.9V trickle charge threshold

* Charge current programmable, up to 1.2A

* 250nA BAT current when no charging

* Soft-start limits in-rush current

* ESOP8 and SOT23-6 package APPLICATIONS

* E-cigarette

ETA40543 General Description

ETA40543 is a single cell, fully integrated constant current (CC)/constant voltage (CV) Li-ion battery charger. Its compact package with minimum external components requirement makes the ETA40543 ideal for portable applications. No external sense resistor or blocking diode is necessary for the ETA40.

ETA40543 Datasheet (603.43 KB)

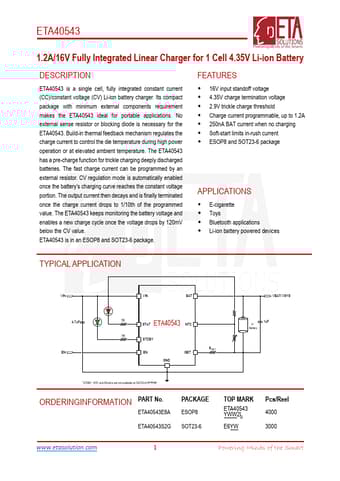

Preview of ETA40543 PDF

Datasheet Details

Part number:

ETA40543

Manufacturer:

ETA

File Size:

603.43 KB

Description:

1.2a/16v fully integrated linear charger.
