ETA8121 Datasheet, Converter, ETA

ETA8121 Features

  • Converter
  • Wide Input Range: 4.2V-18V
  • Forced PWM Control
  • 1MHz Switching Frequency
  • Capable of Delivering 2A Current
  • No External Compensation Needed

PDF File Details

Part number:

ETA8121

Manufacturer:

ETA

File Size:

712.43kb

Download:

📄 Datasheet

Description:

Forced pwm synchronous step-down converter. ETA8121 is a wide input range, high-efficiency and high frequency DC-to-DC step-down switching regulator, capable of delivering up to

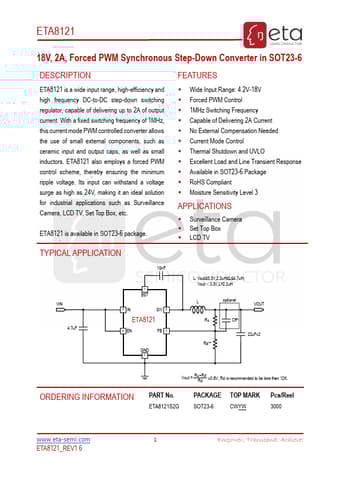

Datasheet Preview: ETA8121 📥 Download PDF (712.43kb)
Page 2 of ETA8121 Page 3 of ETA8121

ETA8121 Application

  • Applications such as Surveillance Camera, LCD TV, Set Top Box, etc. ETA8121 is available in SOT23-6 package. FEATURES
  • Wide Input Range: 4
