ETA8123

High Efficiency Synchronous Step-Down Converter

ETA8123 Features

* Wide Input Range: 4V-18V

* Adaptive COT Control

* Ultra-Fast Load Transient Response

* Forced PWM Mode

* 600KHz Switching Frequency

* Low Rdson Internal Power FETs

* Capable of Delivering 3A

* No External Compensation Needed

* Thermal Shutdown and UVLO

* Ava

ETA8123 General Description

ETA8123 is a wide input range, high-efficiency and high frequency DC-to-DC step-down switching regulator, capable of delivering up to 3A of output current. It adopts an Adaptive COT control scheme that enables very fast transient response and provides a very smooth transition when the output varies .

ETA8123 Datasheet (1.57 MB)

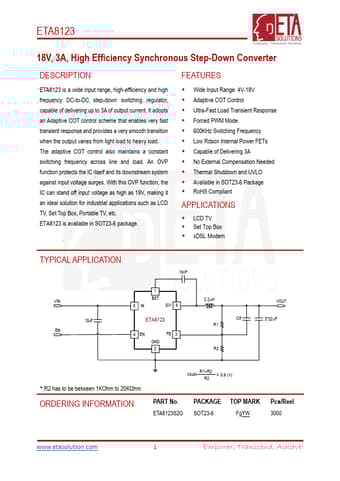

Preview of ETA8123 PDF

Datasheet Details

Part number:

ETA8123

Manufacturer:

ETA

File Size:

1.57 MB

Description:

High efficiency synchronous step-down converter.
