ETA8120 High Efficiency Synchronous Step-Down Converter

ETA8120 Description

ETA8120 18V, 2A, High Efficiency Synchronous Step-Down Converter in SOT23-6 .
ETA8120 is a wide input range, high-efficiency and high frequency DC-to-DC step-down switching regulator, capable of delivering up to 2A of output cur.

ETA8120 Features

* Wide Input Range: 4.5V-18V
* Adaptive COT Control
* Ultra-fast load transient response
* High Efficiency PFM mode at light load
* High Efficiency Synchronous operation
* No load Iq 177uA
* Low Rdson Internal power FETs
* Capable of Delivering 2A
* No External Co

ETA8120 Applications

* LCD TV
* Set Top Box
* xDSL Modem TYPICAL APPLICATION 10 nF 1 BST VIN 5 IN SW 6 10 uF ETA8120 EN 4 EN FB 3 GND 2 2. 2uH R1 47pF 22uF Optional VOUT R2 ORDERING INFORMATION www. etasolution. com ETA8120 REV9.7 PART No. ETA8120S2G PACKAGE SOT23-6 R1+R2 Vout= ×0.6(V

📥 Download Datasheet

Preview of ETA8120 PDF

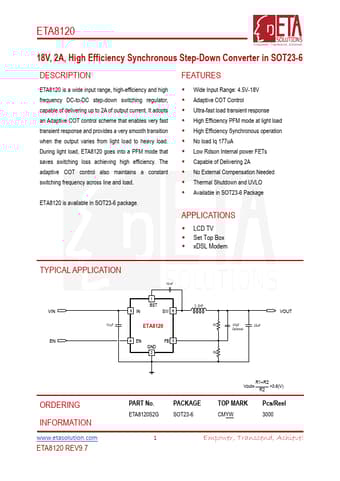

datasheet Preview Page 2 datasheet Preview Page 3
