2N5220 - NPN SILICON ANNULAR TRANSISTOR

2N5220 Description

2N5220 (SILICON) NPN SILICON ANNULAR TRANSISTOR designed for low-power, large signal audio and general-purpose amplifier applications.Complements P.

2N5220 Applications

* Complements PNP type 2N5221 .

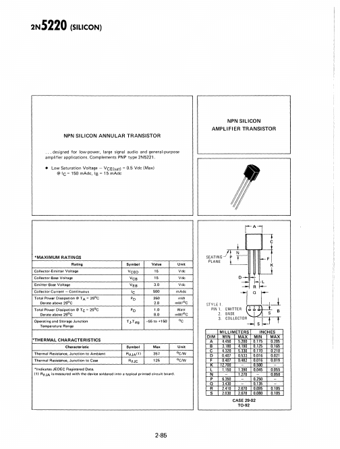

* Low Saturation Voltage - VCE(sat) = 0.5 Vdc (Max) @IC= 150 mAde, 16 = 15 mAdc NPN SILICON AMPLIFIER TRANSISTOR 'MAXIMUM RATINGS Rating Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Collector Current - Continuous Total Power Dissipati
