2N5222 - NPN SILICON ANNULAR TRANSISTOR

2N5222 Description

2N5222 (SILICON) NPN SILICON ANNULAR TRANSISTOR designed for RF amplifier, mixer, and video IF applications.* High Current * Gain-Bandwi.

2N5222 Applications

* High Current
* Gain-Bandwidth Product fT = 450 MHz (Min) @ IC = 4.0 mAde
* Coliector
* Emitter Saturation VoltageVCE = 1.0 Vdc (Max) @ IC = 4.0 mAde
* Low Collector
* Base Capacitance Ccb= 1.3pF (Max)@VCB=10Vdc NPN SILICON AMPLIFIER TRANSISTOR
* MAXIMUM RATING

📥 Download Datasheet

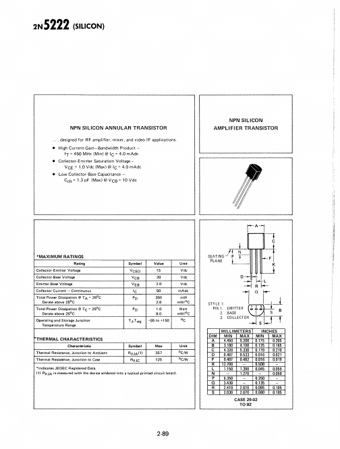

Preview of 2N5222 PDF
