2N5642, 2N5641 Datasheet - ETC

2N5642 NPN SILICON RF POWER TRANSISTORS

2N5641 (SILICON) 2N5642 2N5643 NPN SILICON RF POWER TRANSISTORS . designed for VH F power amplifier or oscillator applications in military and industrial equipment. These devices are particularly suited for use in Class AB, B, or C amplifier applications to 400 MHz. Balanced Emitter Construction to provide the designer with the device technology that assures ruggedness and resists transistor damage caused by load mismatch. Stripline packaging for lower lead inductance and b.

2N5641-ETC.pdf

This datasheet PDF includes multiple part numbers: 2N5642, 2N5641. Please refer to the document for exact specifications by model.

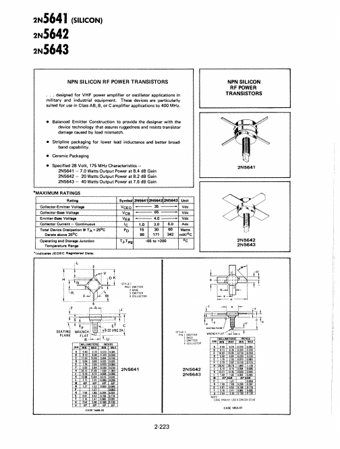

2N5642 Datasheet Preview Page 2 2N5642 Datasheet Preview Page 3

Datasheet Details

Part number:

2N5642, 2N5641

Manufacturer:

ETC

File Size:

346.74 KB

Description:

Npn silicon rf power transistors.

Note:

This datasheet PDF includes multiple part numbers: 2N5642, 2N5641.
Please refer to the document for exact specifications by model.
