2N5644 - NPN SILICON RF POWER TRANSISTOR

2N5644 Description

2NS644 (SILICON) NPN SILICON RF POWER TRANSISTOR designed for 12.5 Volt, UHF large signal amplifier applications reo quired in industrial and consum.

2N5644 Applications

* reo quired in industrial and consumerFMequipmentoperating to520 MHz.
* Low lead inductance stripline package for ease of design and in
* creased broadband capability
* Balanced Emitter Construction to protect against device damage due to load mismatch
* Specified 12.5 Volt

📥 Download Datasheet

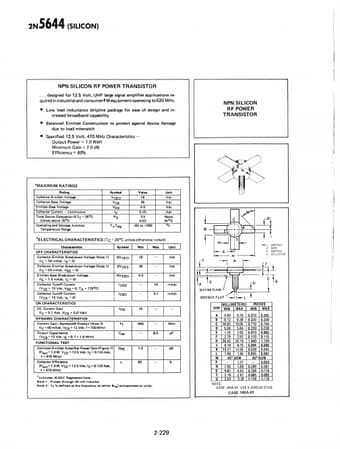

Preview of 2N5644 PDF
