2N5646 - NPN SILICON RF POWER TRANSISTOR

2N5646 Description

2N5646 (SILICON) NPN SILICON RF POWER TRANSISTOR * ..designed for 12.5 Volt, UHF large signal amplifier applications required in industrial and.

2N5646 Applications

* required in industrial and consumerFMequipmentoperating to520 MHz.
* Low lead inductance stripline package for ease of design and in
* creased broadband capability
* Balanced Emitter Construction to protect against device damage due to load mismatch
* Specified 12.5 Volt

📥 Download Datasheet

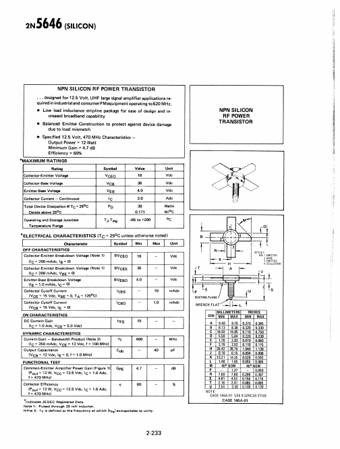

Preview of 2N5646 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2N5646
Manufacturer
ETC
File Size
150.57 KB
Datasheet
2N5646-ETC.pdf
Description
NPN SILICON RF POWER TRANSISTOR
