IW4013B Dual D Flip-Flop High-Voltage Silicon-Gate CMOS

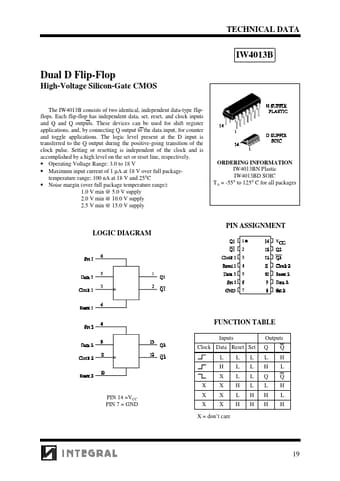

TECHNICAL DATA IW4013B Dual D Flip-Flop High-Voltage Silicon-Gate CMOS The IW4013B consists of two identical, independent data-type flipflops. Each flip-flop has independent data, set, reset, and clock inputs and Q and Q outputs. These devices can be used for shift register applications, and, by connecting Q output to the data input, for counter and toggle applications. The logic level present at the D input is transferred to the Q output during the positive-going transition of the clock pulse.

IW4013B Datasheet (177.64 KB)

Preview of IW4013B PDF

Datasheet Details

Part number:

IW4013B

Manufacturer:

ETC

File Size:

177.64 KB

Description:

Dual d flip-flop high-voltage silicon-gate cmos.
