NSVA288, JRC SAW FILTER

NSVA288 Apr.

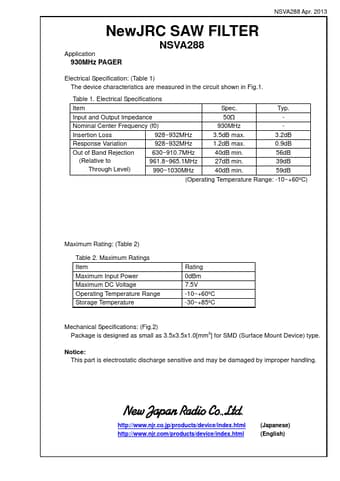

2013 NewJRC SAW FILTER Application 930MHz PAGER NSVA288 Electrical Specification: (Table 1) The device characteristics are measured in the circuit shown in Fig.1.

Table 1.

Electrical Specifications Item Spec.

Typ.

Input and Output Impedance 50Ω - Nominal Center Frequency (f0) 930MHz - Insertion Loss 928~932MHz 3.5dB max.

3.2dB Response Variation 928~932MHz 1.2dB max.

0.9dB Out of Band Rejection 630~910.7MHz 40dB min.

56dB (Relative to Through Level) 961.8~
