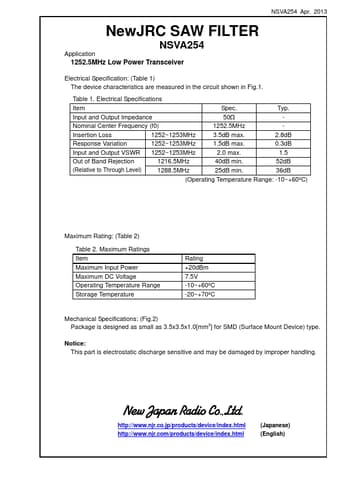

NSVA254, SAW FILTER

NSVA254 Apr.

2013 NewJRC SAW FILTER NSVA254 Application 1252.5MHz Low Power Transceiver Electrical Specification: (Table 1) The device characteristics are measured in the circuit shown in Fig.1.

Table 1.

Electrical Specifications Item Spec.

Typ.

Input and Output Impedance 50Ω - Nominal Center Frequency (f0) 1252.5MHz - Insertion Loss 1252~1253MHz 3.5dB max.

2.8dB Response Variation 1252~1253MHz 1.5dB max.

0.3dB Input and Output VSWR 1252~1253MHz 2.0 max.

1.5 Out of Band Re
