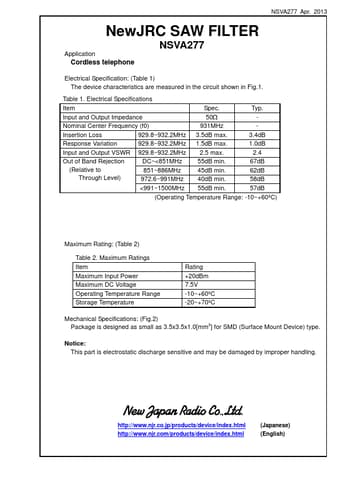

NSVA277, SAW FILTER

NSVA277 Apr.

2013 NewJRC SAW FILTER Application Cordless telephone NSVA277 Electrical Specification: (Table 1) The device characteristics are measured in the circuit shown in Fig.1.

Table 1.

Electrical Specifications Item Spec.

Typ.

Input and Output Impedance 50Ω - Nominal Center Frequency (f0) 931MHz - Insertion Loss 929.8~932.2MHz 3.5dB max.

3.4dB Response Variation 929.8~932.2MHz 1.5dB max.

1.0dB Input and Output VSWR 929.8~932.2MHz 2.5 max.

2.4 Out of Band Rejection DC
