Saw filter.

NSVA279, SAW FILTER

NSVA279 Apr.

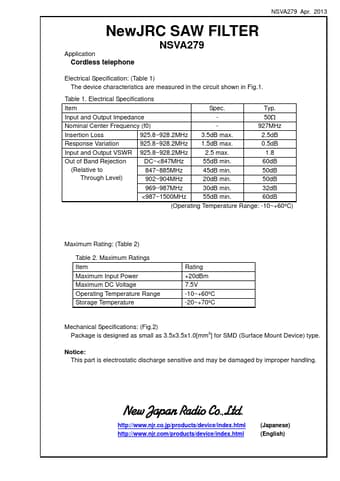

2013 NewJRC SAW FILTER Application Cordless telephone NSVA279 Electrical Specification: (Table 1) The device characteristics are measured in the circuit shown in Fig.1.

Table 1.

Electrical Specifications Item Spec.

Typ.

Input and Output Impedance - 50Ω Nominal Center Frequency (f0) - 927MHz Insertion Loss 925.8~928.2MHz 3.5dB max.

2.5dB Response Variation 925.8~928.2MHz 1.5dB max.

0.5dB Input and Output VSWR 925.8~928.2MHz 2.5 max.

1.8 Out of Band Rejection DC
