NSVA276 SAW FILTER

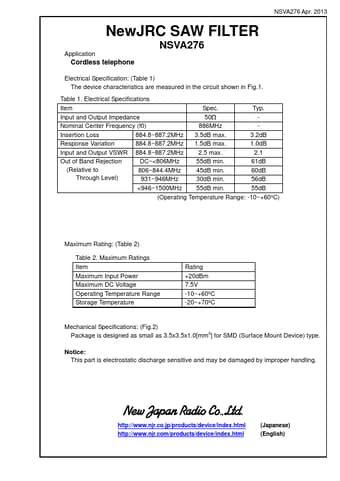

NSVA276 Apr. 2013 NewJRC SAW FILTER Application Cordless telephone NSVA276 Electrical Specification: (Table 1) The device characteristics are measured in the circuit shown in Fig.1. Table 1. Electrical Specifications Item Spec. Typ. Input and Output Impedance 50Ω - Nominal Center Frequency (f0) 886MHz - Insertion Loss 884.8~887.2MHz 3.5dB max. 3.2dB Response Variation 884.8~887.2MHz 1.5dB max. 1.0dB Input and Output VSWR 884.8~887.2MHz 2.5 max. 2.1 Out of Band Rejection DC.

NSVA276-NewJapanRadio.pdf

Preview of NSVA276 PDF
NSVA276 Datasheet Preview Page 2 NSVA276 Datasheet Preview Page 3

Datasheet Details

Part number:

NSVA276

Manufacturer:

New Japan Radio

File Size:

172.60 KB

Description:

Saw filter.
