NSV1C201MZ4 Datasheet - ON Semiconductor

NSV1C201MZ4 NPN Transistor

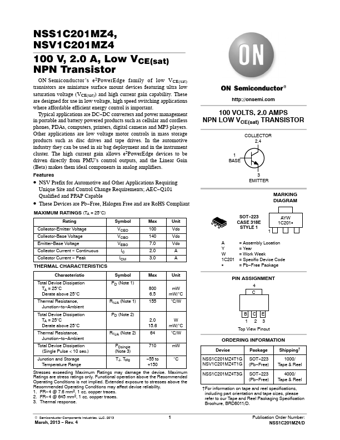

NSS1C201MZ4, NSV1C201MZ4 100 V, 2.0 A, Low VCE(sat) NPN Transistor ON Semiconductor’s e2PowerEdge family of low VCE(sat) transistors are miniature surface mount devices featuring ultra low saturation voltage (VCE(sat)) and high current gain capability. These are designed for use in low voltage, high speed switching applications where affordable efficient energy control is important. Typical applications are DC DC converters and power management in portable and battery powered products s.

NSV1C201MZ4 Features

* NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC

* Q101 Qualified and PPAP Capable

* These Devices are Pb

* Free, Halogen Free and are RoHS Compliant MAXIMUM RATINGS (TA = 25°C) Rating Symbol Max Unit Collec

NSV1C201MZ4 Datasheet (102.34 KB)
