QCA150A40 - TRANSISTOR MODULE

QCA150A40 Description

TRANSISTOR MODULE QCA150A/QBB150A40/60 UL;E76102 M QCA150A and QBB150A is a dual Darlington power transistor module with two high speed, high power D.

QCA150A40 Applications

* Motor Control VVVF , AC/DC Servo, UPS, Switching Power Supply, Ultrasonic Application Unit A 95max 62max NAME PLATE QCA QBB Maximum Ratings Symbol VCBO VCEX VEBO IC IC IB PT Tj Tstg VISO Item Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Reverse Collecto

📥 Download Datasheet

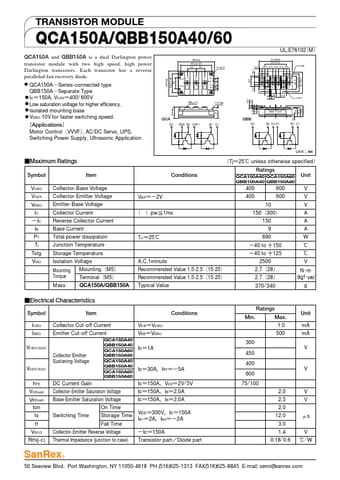

Preview of QCA150A40 PDF
datasheet Preview Page 2

Datasheet Details

Part number
QCA150A40
Manufacturer
ETC
File Size
114.22 KB
Datasheet
QCA150A40_ETC.pdf
Description
TRANSISTOR MODULE
