QCA100A60 (QCA100A40 / QCA100A60) TRANSISTOR MODULE

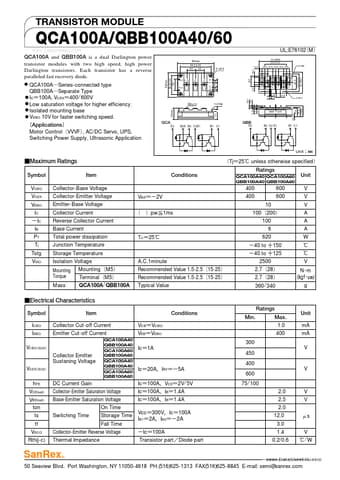

TRANSISTOR MODULE QCA100A/QBB100A40/60 www.DataSheet4U.com UL;E76102 M 95max QCA100A and QBB100A is a dual Darlington power transistor modules with two high speed, high power Darlington transistors. Each transistor has a reverse paralleled fast recovery diode. QCA100A Series-connected type QBB100A Separate Type IC 100A, VCEX 400/600V Low saturation voltage for higher efficiency. Isolated mounting base VEBO 10V for faster switching speed. Applications Motor Control VVVF , AC/DC Servo, UPS, Swi.

QCA100A40_SanRexCorporation.pdf

QCA100A60 Datasheet Preview — This datasheet PDF includes multiple part numbers: QCA100A60, QCA100A40. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

QCA100A60, QCA100A40

Manufacturer:

SanRex Corporation

File Size:

145.69 KB

Description:

(qca100a40 / qca100a60) transistor module.

Note:

This datasheet PDF includes multiple part numbers: QCA100A60, QCA100A40.
Please refer to the document for exact specifications by model.
