QCA100AA120 Datasheet - SanRex Corporation

QCA100AA120 - TRNASISTOR MODULE

TRANSISTOR MODULE QCA100AA120 www.DataSheet4U.com UL;E76102 M QCA100AA120 is a dual Darlington power transistor module which has seriesconnected high speed, high power Darlington transistors.

Each transistor has a reverse paralleled fast recovery diode.

The mounting base of the module is electrically isolated from semiconductor elements for simple heatsink construction, IC 100A, VCEX 1200V Low saturation voltage for higher efficiency.

High DC current gain hFE Isolated mounting base Applicatio

QCA100AA120_SanRexCorporation.pdf

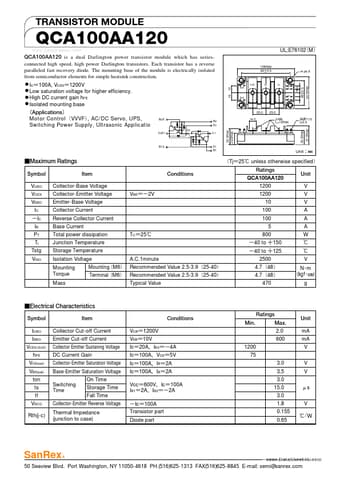

Preview of QCA100AA120 PDF
QCA100AA120 Datasheet Preview Page 2

Datasheet Details

Part number:

QCA100AA120

Manufacturer:

SanRex Corporation

File Size:

136.04 KB

Description:

Trnasistor module.
